PRODUCT SPECIFICATION
Rated Capacity: 1 Ton (1,000 kg)
Standard Lift Height: 3 Meters to 12m)
Test Load: 1.5 Tons (150% of rated capacity)
Load Chain Diameter: 6 mm
Number of Load Columns: 1 (Single Fall)
Effort to Lift Max Load: 300 N - 340 N
Braking System: Automatic Weston-style Mechanical Brake
Hook Material: Drop-forged Heat-treated Alloy Steel
Body Material: Impact-resistant Pressed Steel
Chain Material: Grade 80 (G80) Alloy Steel, Black Oxide finish
DESCRIPTION

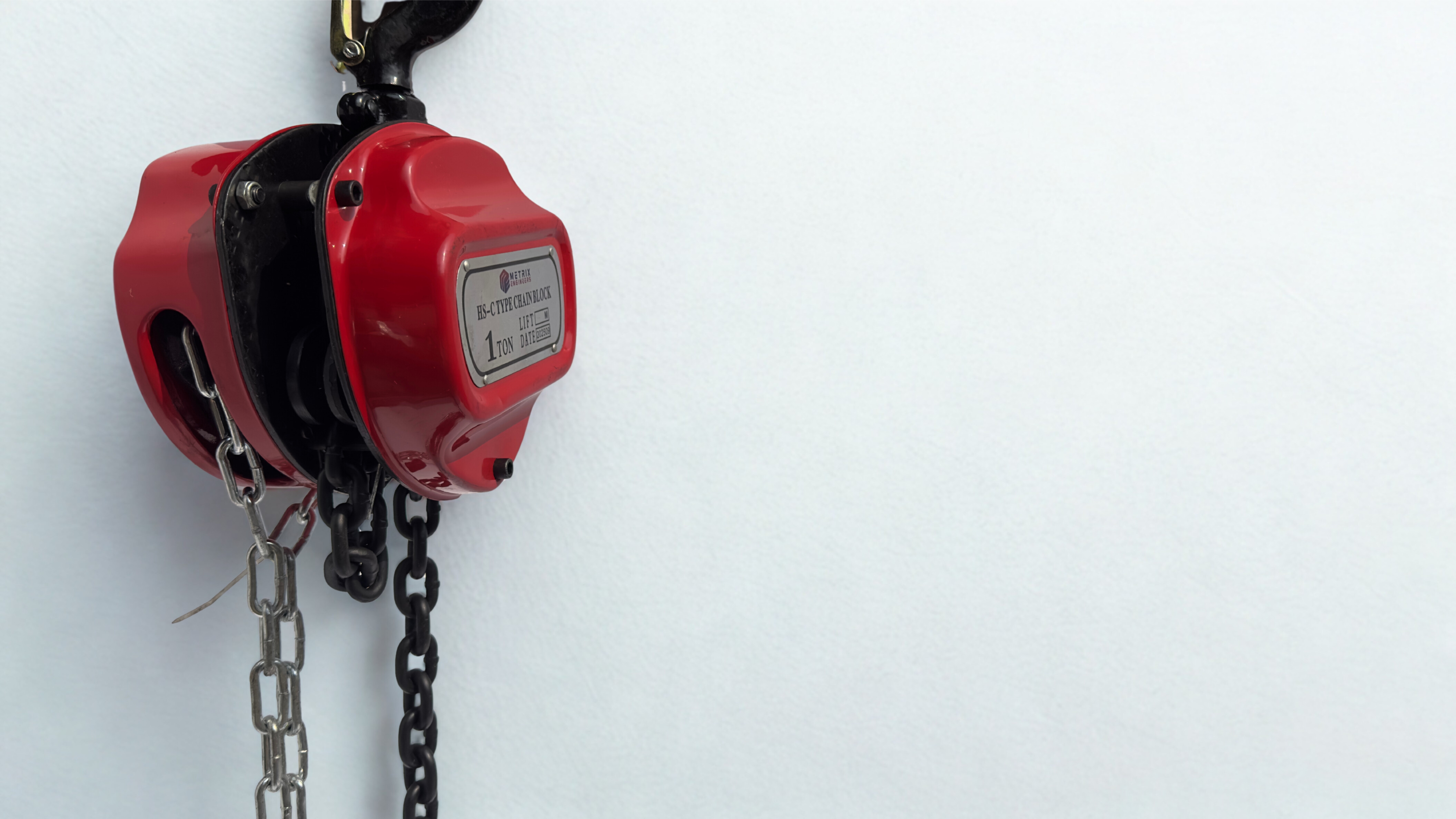

The 1 Ton Chain Block is a portable lifting device designed for heavy-duty lifting and pulling applications using a hand-operated chain. It utilizes a dual-pawl braking system and high-efficiency gear ratios to allow a single operator to lift loads up to 1,000 kg with minimal effort. Built for durability, it features a rugged steel housing, heat-treated load chains, and 360-degree swivel hooks with safety latches. It is an essential tool for workshops, construction sites, factories, and garage maintenance where overhead lifting is required without the need for power.
