PRODUCT SPECIFICATION

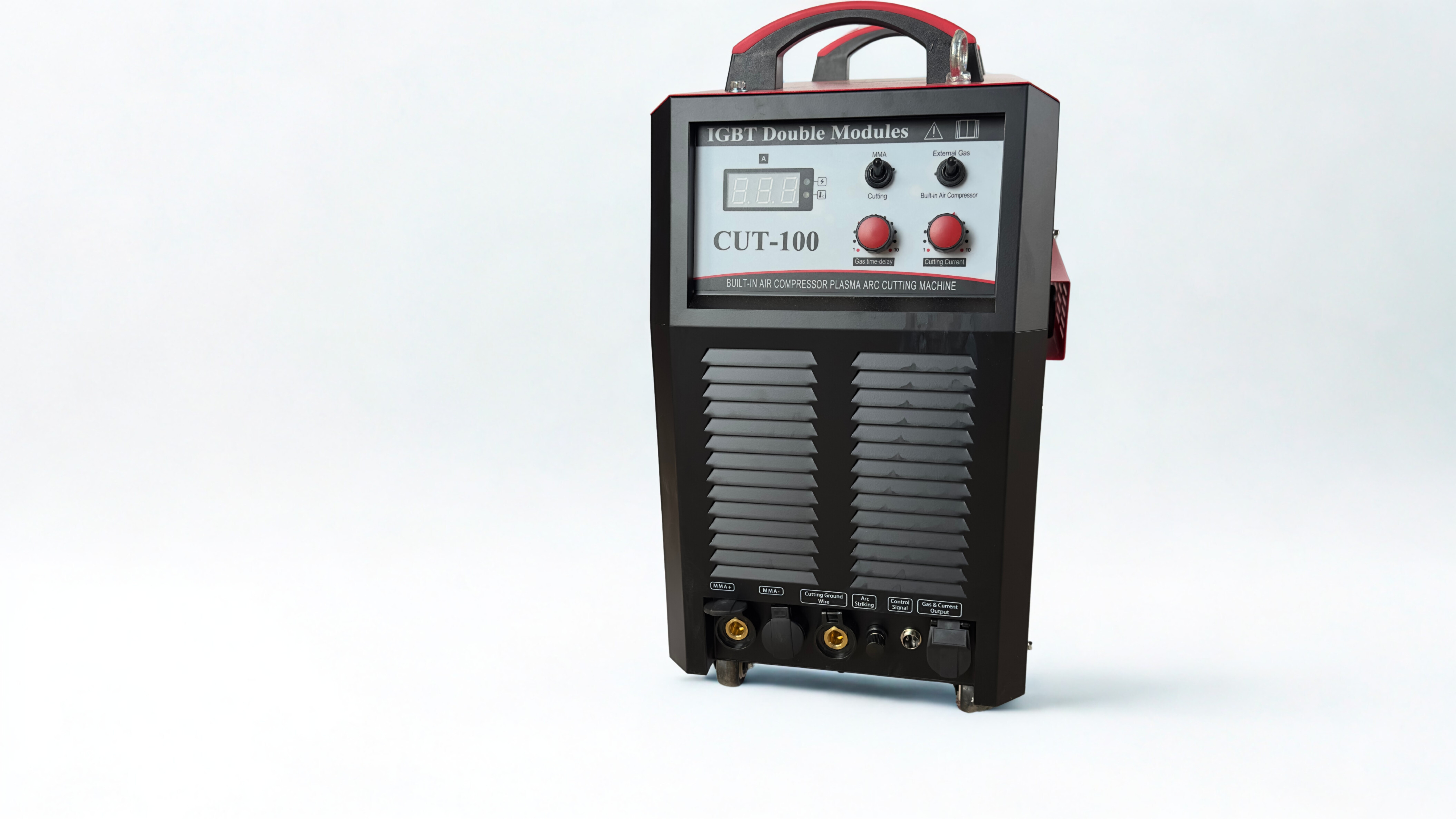

Product Type: CUT 100
Input power Voltage: 3ph 380V ± 15%
Rated Input Capacity: 16KVA
Rated Input Current: 24.2A
Output Non-Load Voltage: 310V
Current Adjust range: 30A-100A
Rated load voltage: 120V
Max Cutting Thickness: 35mm
Duty Cycle: 60%
Insulation Class: F
Shell Protection grade: IP21S
Dimension: 595 X 306 X 530mm
Weight: 33.6kg
DESCRIPTION
- It can be used with CNC system
- The cutting current is adjustable form 30A to the Axium output current Connection, which can meet the requirements of different workpiece materials, thickness and cutting speed, and the cut is beautiful
- It can cut a variety of metal sheets such as carbon steel, Stainless steel, galvanized steel, copper and aluminum.
