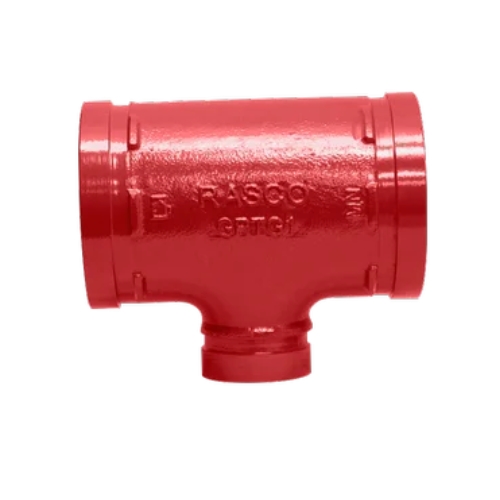

Ductile Iron Grooved Reducing Tee (Unequal Tee)

PRODUCT SPECIFICATION
Common Size Range: 50x25 MM (2"x1") up to 300x250 MM (12"x10")
Material: Ductile Iron (ASTM A536, Grade 65-45-12)
End Connection: Grooved (to AWWA C-606 standards)
Max Working Pressure: 300 PSI (20.7 Bar / 2.0 MPa)
Surface Coating: Red Alkyd Enamel / Epoxy Powder Coated (RAL 3000)
Internal Surface: Smooth cast finish to reduce friction/pressure drop
Standard Compliance: UL Listed, FM Approved, CE, and VdS
Optional Finish: Hot Dip Galvanized (for corrosive environments)​

DESCRIPTION

The DI Grooved Unequal Tee is a cast fitting designed to integrate a smaller branch line into a larger diameter primary run. Unlike a standard "equal" tee, the branch outlet has a smaller diameter than the run ends. It features grooved ends on all three ports, allowing for rapid installation using mechanical couplings without the need for welding or threading. This fitting is specifically engineered for high-pressure systems, providing excellent flow characteristics and structural integrity in fire protection, HVAC, and industrial piping.​
