PRODUCT SPECIFICATION
Rotation Angle: 360° Continuous (Motorized)
Tilting Range: 0° to 180° (Manual or Motorized Gear Drive)
Table Diameter: 300 mm to 1200 mm (depending on load capacity)
Load Capacity: Available from 50 kg to 5,000 kg (Horizontal)
Rotation: Speed Variable (VFD Controlled), 0.05 to 5 RPM
Tilt Speed: 1.0 to 1.5 RPM (for motorized versions)
Worktable Design: Concentric T-Slots for easy jig/chuck mounting

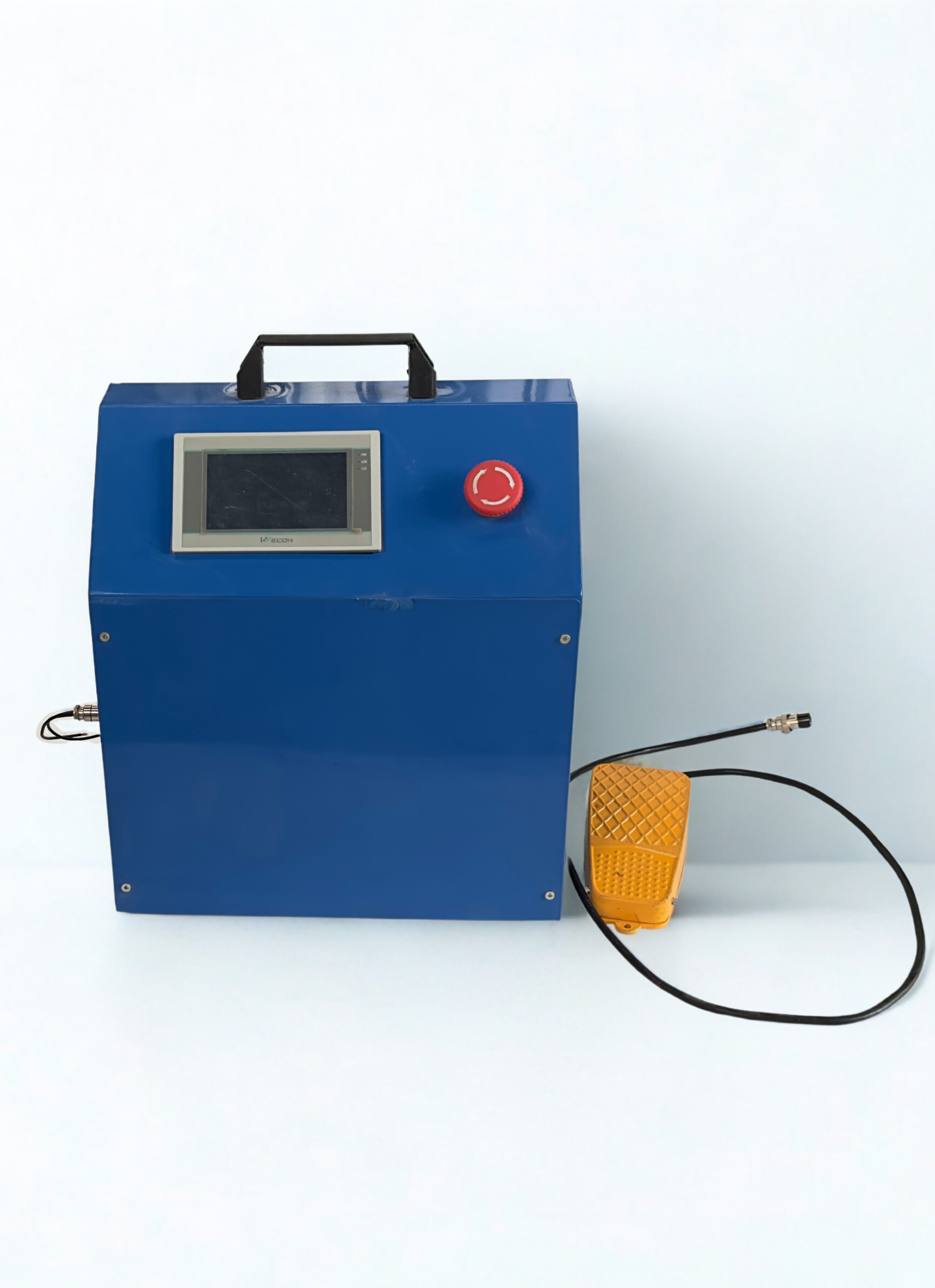

Control System: Foot Switch (Start/Stop) and Remote Pendant for speed/tilt
Earthing/Grounding: Integrated high-capacity copper brush (Current up to 500A)
Power Supply: 220V/440V (3-Phase) based on industrial requirement
DESCRIPTION

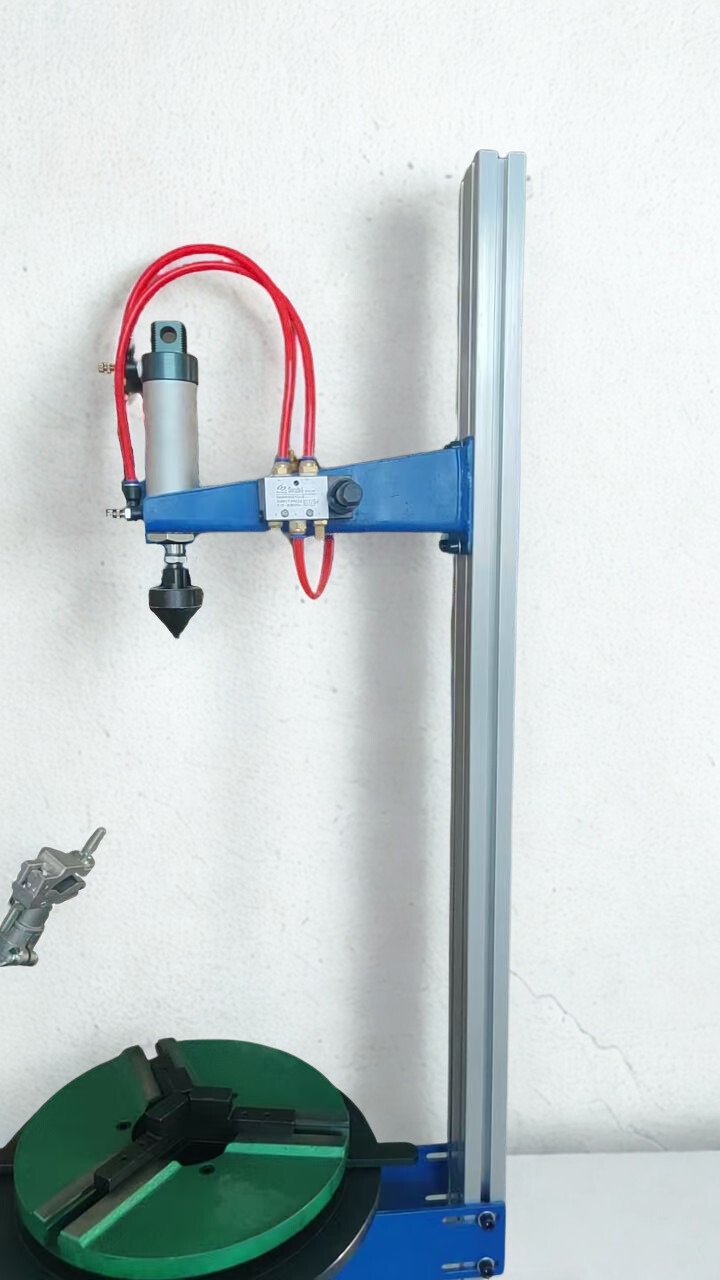

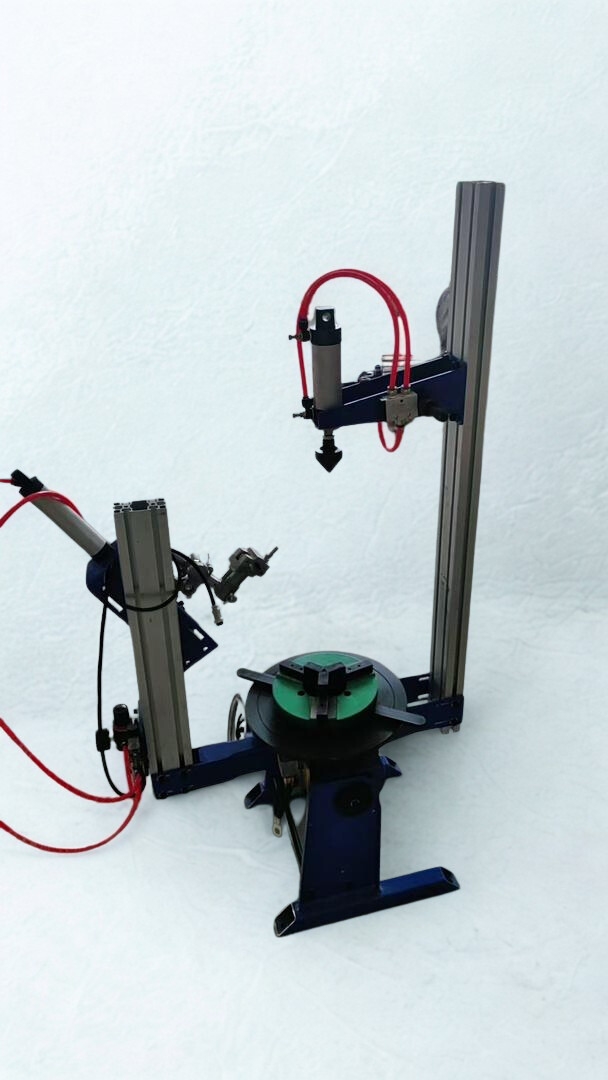

The Welding Positioner is a specialized material handling machine designed to rotate and tilt cylindrical or flat workpieces to the optimal welding angle. By allowing the welder to work in a "downhand" or flat position, it significantly improves weld quality, penetration, and speed while reducing operator fatigue. This model features a robust circular turntable and a high-torque tilting mechanism that allows for a full 180-degree tilt, enabling the workpiece to be flipped completely. It is widely used in the fabrication of pressure vessels, pipe headers, flanges, and circular tank seams.
