Pipe Scaffolding Pipe Clamp 360° Moving

DESCRIPTION

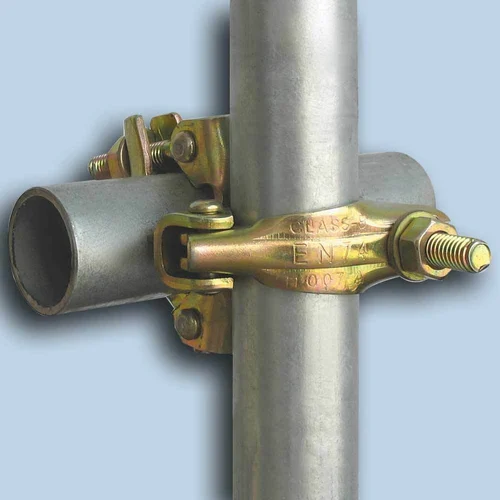

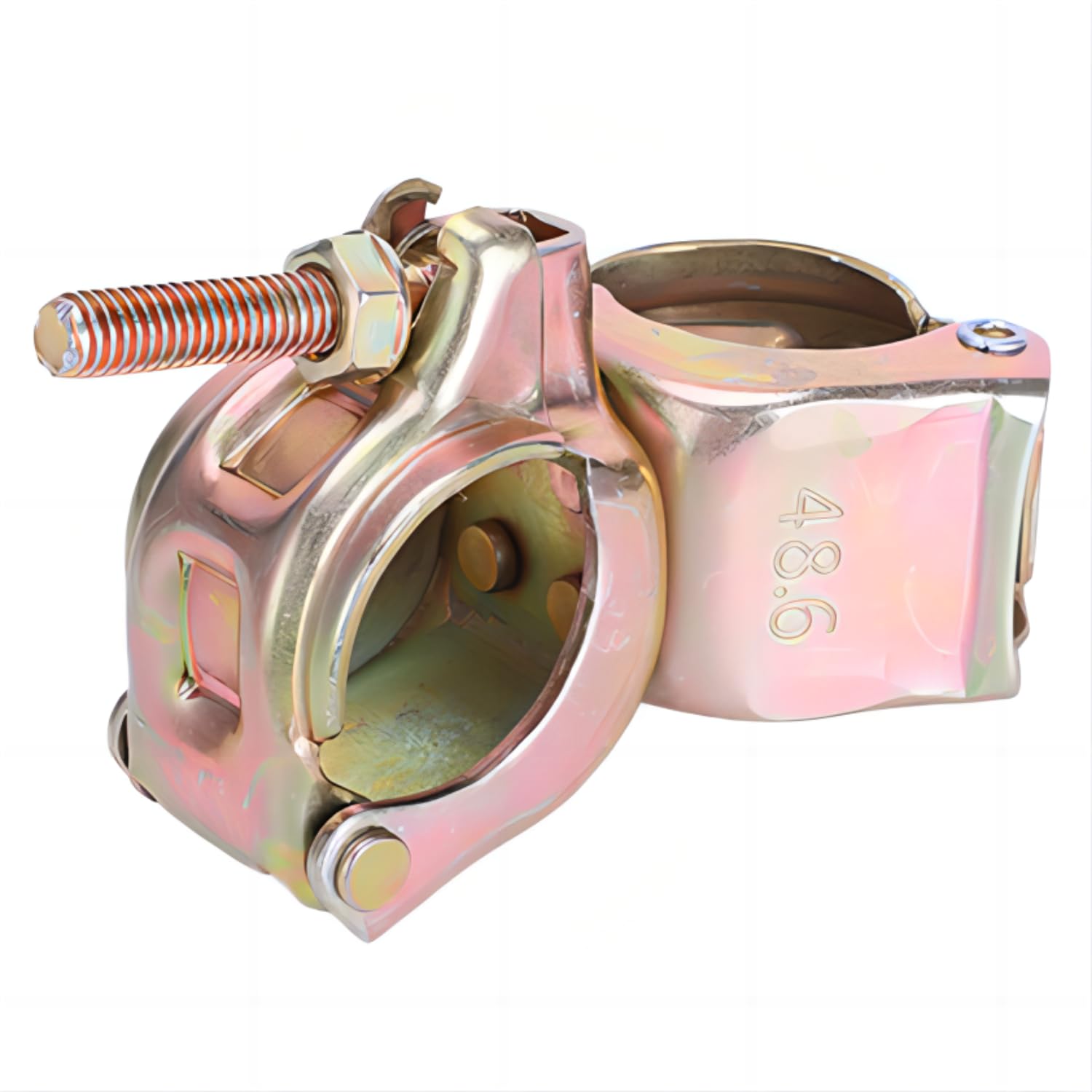

A 360° moving pipe scaffolding clamp (also called a swivel clamp or swivel coupler) is a crucial component in tube and clamp scaffolding systems. It allows two scaffolding tubes to be connected at any angle with full rotational freedom to adjust the clamp position, providing flexibility to create secure, adjustable, and safe scaffold structures.

The clamp is typically made of high-strength forged or pressed steel with a corrosion-resistant finish such as hot-dip galvanizing or zinc plating. It features a robust locking mechanism to securely hold scaffold tubes of 48mm diameter, commonly used in scaffolding work. This swivel clamp supports the construction of complex scaffolding shapes where fixed 90-degree connections are insufficient.​

PRODUCT SPECIFICATION
Material: Drop forged steel or pressed steel
Surface finish: Hot-dip galvanizing or zinc-plated for corrosion resistance
Tube Diameter: Designed for 48mm diameter scaffold tubes
Rotation: 360-degree full swivel rotation for flexible angle adjustments
Weight: 0.9 to 1.2 kg
Load Capacity: High load-bearing capacity suitable for construction scaffolding
Usage: Connects two scaffold tubes at varying angles, essential for complex and safe scaffold assemblies
Additional Features:
Easy to install and tighten with standard scaffolding spanners
Suitable for both temporary and longer-term scaffolding setups​
